Rugged 82 Keys Illuminated Backlit Compact Industrial Keyboard Vandal Proof And Dust Proof

Brand Name : IKB-MKB
Model Number : K-TEK-M321-FN-BL-BT
Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin : Shenzhen,China
MOQ : 1 pc
Price : USD
Payment Terms : T/T, Western Union, Paypal
Supply Ability : 3000pcs/month
Delivery Time : 5-8 working days
Packaging Details : Each keyboard to one box,several boxes to one carton
Key : 82 keys
Key top style : Protuberant rectangular keys.
Actuator/keys materials : polymer
Key travel : 1.50mm
Switch life : more than 10 million of operations.
Lettering : laser-etched or high quality ink print
G.W. : 1.80KGs
Contact Now

Rugged 82 Keys Illuminated Backlit Compact Industrial Keyboard Vandal Proof And Dust Proof

DESCRIPTION: 82 keys IP65 dynamic vandal proof industrial & military keyboard with adjustable industrial backlight and industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, with FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the top line for easy operation, with CLEAN key to lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate (included), top stainless steel plate with mounting holes for top panel mounted solution.


  • This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.


  • NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are necessary;
  • Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof under hostile environments.
  • Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
  • Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
  • Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering rub-off.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
  • Operational life of more than 10 million cycles per key.
  • Resistant to most commonly used cleaning agents.


Key82 keys
Key top styleProtuberant rectangular keys.
Actuator/keys materialspolymer
Top SS plate1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)
Back SS plate1.5mm stainless steel plate
Robust polycarbonate frameBetween top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
Key Size11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
Key travel1.50mm
Switch lifemore than 10 million of operations
Letteringlaser-etched or high quality ink print.
Dimensions321.2mm x 196.0mm (top panel) ( L x W )


Supply Voltage+5V DC +/-5%
Current Rating20mA for keyboard without backlight,140mA for keyboard with backlight on.
EMC StandardIt is compliance with the council EMC directive 89/336/EEC
EmissionEN 50081-1
ImmunityEN 50082-1
Lifespan5 years
Switch Contact MaterialCarbon-on-Gold key switch technology PCB
InterfacePS2, USB available.
OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

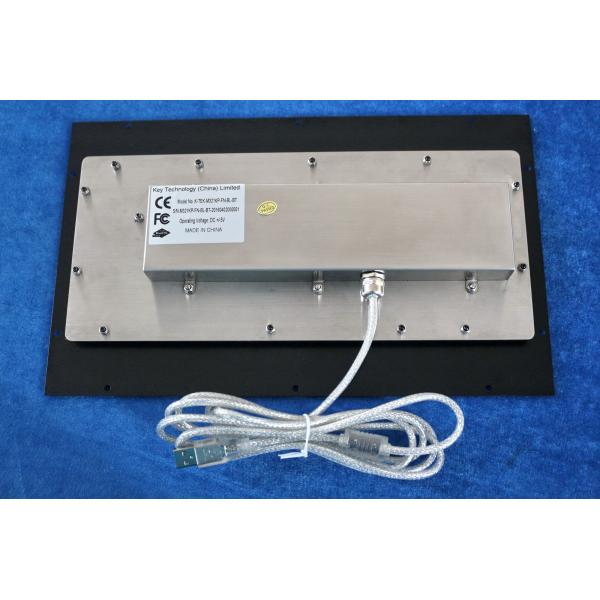

Actual Photos:


  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 100%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6


  • RoHS, CE and FCC, ESD
  • Protection Level: IP65 (front panel)
  • Vandal resistant IK10
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min
