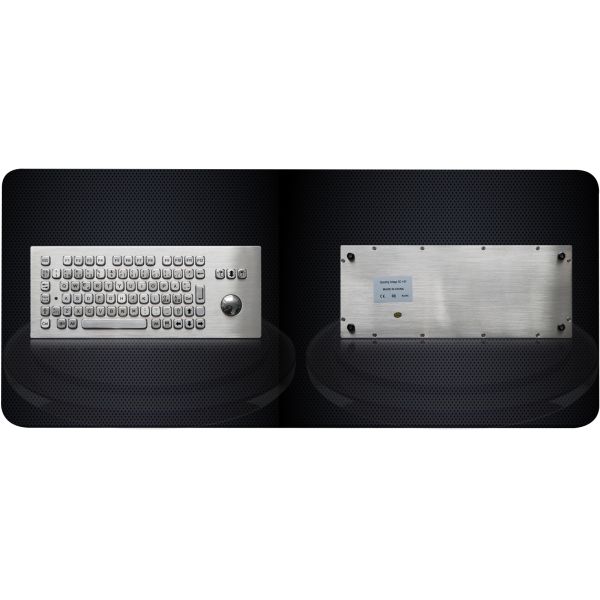

Stainless steel keyboard desk-top mounting washable with 38.0mm
1. The keyboard can be dynamic washable with water and other
liquids, it can work well even under water with 2.0mm depth after 8
hours dynamic water proof testing.
2. The full keyboard can be locked/disabled via FN + Clean
combination keys for easy cleaning without needing to take the
keyboard away from PC.
3. Imposing stainless steel design, specially designed keyboards
meet the highest demands with regard to design, functionality,
longevity and high protection level.
4. Stainless steel fascia and key-tops guard willful destruction,
vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation
under hostile environments.
5. Waterproof execution according to IP65 protection from top
panel, top stainless steel plate with threaded bolts for easy
tightly mounting to enclosure or panel.
6. An excellent tactile feel with full-long travel switches and
allow users to achieve fast and accurate data input without any
noise. With firm tactile perception for comfortable operation
7. Internet friendly key layout, key-tops are laser-etched in
legends and characters for easy readability, long life to prevent
8. Metal keys are protected against twisting and levering which can
not be dislodged from front, or defaced removing key covers.
9.Ease of customizing with multiple languages, to accommodate
foreign or custom variants.
10. Complete electronic modules including controller in close
consultation with our customers are available.
11. PS/2, USB connection plug and play with PC via PC existing OS
driver, no needing of install separate driver.
12. The numeric keypad is available with encryption module
supporting DES/TDES for bank usage of CDM/ATM.
This Keyboard is mainly targeted for use for unsupervised or
semi-supervised positions of varied access applications, internet
terminals and information kiosks at universities, shopping malls,
hotels, banks, airports, railway-stations and other public areas,
ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.
82 keys, super quality SUS304 brushed stainless steel
Key top style
Protuberant rectangular keys, with laser engraved and etched
legends and raised braille on keys are available
14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 70mm for space bar.
2.0mm long stroke
38.1mm (1.5’) diameter,
IP65 static 400DPI mechanical trackball module,
IP68 dynamic washable 800DPI optical trackball module,
IP68 dynamic washable 1200DPI laser trackball module
more than 10 million of operations
0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
|-20oC to +60oC|
Stainless Steel Housing
1.20mm thickness super quality brushed stainless steel
361.0mm x 145.0mm x 45.0mm (L x W x H)
