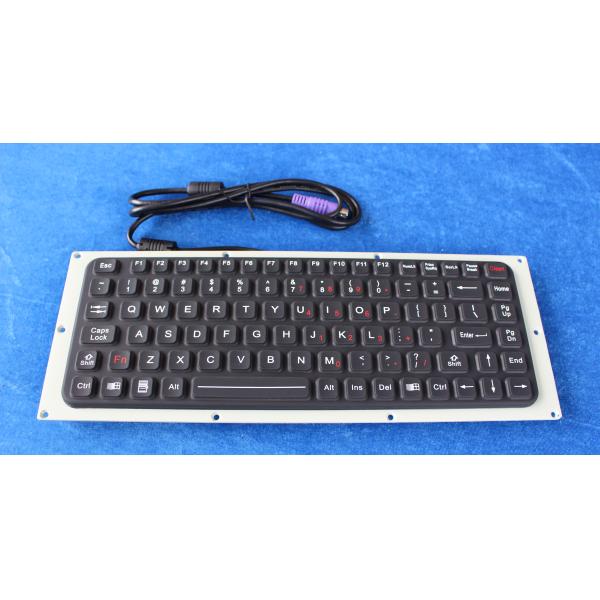

90 Keys Silicone Industrial Keyboard With For Ruggdeized Computer
DESCRIPTION: 90 keys IP67 dynamic sealed & ruggedized industrial silicone rubber keyboard with integrated function keys (F1, F2...F11,F12)
and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+Clean key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, panel mounted with aluminum back plate with mounting holes and sealed with top ruggedized industrial silicone cover & Industrial carbon-on-gold PCB.
DIMENSIONS : 331.0mm x 123.0mm(L x W )
APPLICATIONS:
This keyboard provides a rugged, compact design with the embedded convenience of an integrated numeric keypad. For working in low-light areas, it is also available with optional LED backlighting. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
OTHER INDUSTRIES
| MECHANICAL DATA | |
| Key: | 90 keys |
| Key top style: | Protuberant rectangular keys with tactile feeling. |
| Key Size: | 12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key. |
| Switch life: | more than 5 million of operations. |
| G.W.: | 1.20KGs |
| Dimensions: | 331.0mm x 123.0mm (L x W) |
| ELECTRICAL DATA | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 30mA |
| EMC Standard: | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology with gold PCB. |
| Interface: | PS2, USB available. |
| Cable length: | Standard 2.0m, customized length available. |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
