Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout

Name: Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout
Brand: IKB-MKB
Price: 1 USD

Wholesale Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout from china suppliers

Brand Name : IKB-MKB

Model Number : K-TEK-A80TP-BT-UT-IL-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Dimensions : 80.0mm x 80.0mm (front panel)

Interface : PS2, USB, Y cable

Material : stainless steel

Layout : Customized

Contact Now

Black Titanium Electroplated Stainless Steel Touchpad Mouse Industrial Pointing Device

Model NO:K-TEK-A80TP-BT-UT-IL-DWP

Description: IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, high quality durable black titanium electroplated on the top stainless steel plate, with rear panel mounting solution. One complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

Dimension: 80.0mm x 80.0mm (front panel)

Product Pictures:

Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout

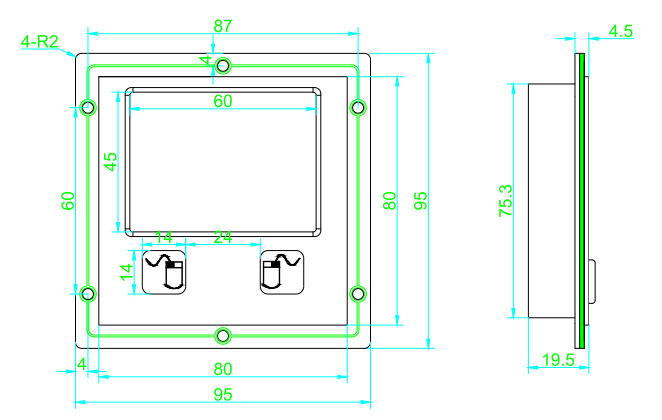

Mechanical Drawing:

Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout

Applications:

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical	Front Plate	Quality brushed stainless steel
	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated touch width	45.00mm (max)
	Validated touch length	60.00mm (max)
	Mounting Rack	Aluminum alloy
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Touchpad lifespan	> 5 years
	Dimensions	Touchpad: 60.0mm x 45.0mm; Front Mounting Panel: 80.0mm x 80.0mm (front panel), Rear Mounting Panel: 95.0mm x 95.0mm
Interface	PS2 and USB both available
Electrical	Power supply		5 VDC ± 0.25V
	Work current		17mA (normal)
	X/Y position sensing resolution:		1000 points/inch (40 points/mm)
	X/Y position reporting:		Relative
	Tracking speed:		Maximum 1,016 m/sec
	Protection level:		IP67 dynamic (front panel)
	Static Release:		15 KV (front panel)
	EMC Standard:		EN 55032:2015, EN 55035:2017
Environmental	Operating temperature:		-20°C to +60°C
	Storage temperature:		- 30°C to + 70°C
	Operating RH:		10%-95%
	Atmospheric pressure:		60-106Kpa
Reliability	MTBF		>20000h
	MTTR		< 30min
	Key switch lifespan		>5 million actuations
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
