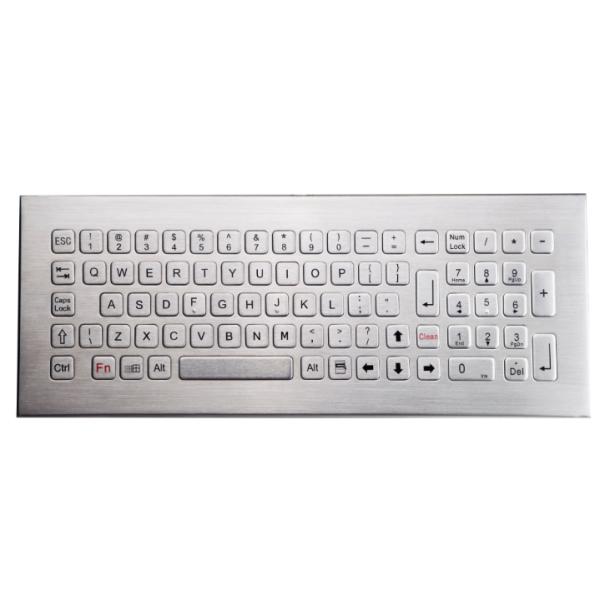

IP67 Dynamic Waterproof Stainless Steel Desktop Keyboard with Flat Keys for Dust Resistant

IP66 dynamic waterproof stainless steel desktop keyboard with 0.45mm short key travel

81 keys compact format IP65 dynamic washable vandal proof stainless steel industrial

keyboard with industrial metal dome PCB with gold-on-gold key switch technology with

short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with

integrated numeric keypad, movable stand alone DESK TOP VERSION, or mountable desktop

with mounting holes on the bottoms for fixing.Which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 350.0mm x 135.0mm x 20.0mm ( Lx W x H)

MECHANICAL DATA

· Actuator/keys:81 keys, super quality SUS304 brushed stainless steel

· Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.

· Key travel: 0.45mm short stroke.

· Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) ,4N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

· Switch life: more than 1 million of operations.

· Stainless Steel Housing: super quality brushed stainless steel.

· G.W.: 2.60KGs

· Dimensions: 350.0mm x 135.0mm x 20.3mm ( Lx W x H)

ELECTRICAL DATA

· Supply Voltage: +5V DC +/-5%

· Current Rating: appr. 30mA

· EMC Standard: EN 55032:2015 ; EN 55035:2017

· Lifespan > 5 years

· Switch Contact Material: Carbon-on-Gold key switch technology PCB.

· Interface: PS2, USB available

· OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20^oC to +60^oC

· Storage temperature: -30^oC to +70^oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40^oC: 21 days, IEC 60512-6

· Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY

· RoHS Compliant, CE and FCC, ESD

· Protection Level: IP68(front panel)

· Vandal resistant IK09

· Key Lifespan >1 million actuations

· MTBF >20000H

· MTTR <30min
